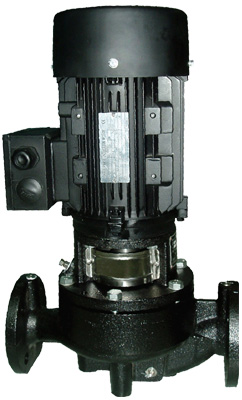

TD In-line Circulation Pump

Introduction
The type TD pumps are single stado in-linecentrifugal pumps,equpped with standard motor and mechical seal.Comparing with other pumps in similar structure,these pumps are less accessible to the impurity in the liquid.
NPSH
To avold the cavitations,and lessen the libration and noise,you are suggested to adopt NPSH in table 2,to make sure that the pumps are under optimal operation conition. The data in the sheet are relative pressure(Bar),which can be read on manometer at the inlet side of the pumps.
Application
The pumps are applicable for clean,attenuate,non-corrosive,non-flammable,and non-explosive liquid which shall not contain any solid grain and fibre that might damage the pump me chanically or chemically.The detailed requirements on the liquid is in Table 3.If the liquid viscosity or density is beyond the required level,the performance curves will descend and energy consumption will be increased.
Liquid temperature :
15120
Max.Pressure: PN16

Product Power: 1.1-45kw



Model

Power

Flow

Head

speed

kw

m3/h

m

r/min

TD32









TD32-18/2

1.1

8

18

2900

TD32-21/2

1.5

12.5

21

2900

TD32-25/2

2.2

12.5

25

2900

TD32-32/2

3

12.5

32

2900

TD32-38/2

4

12.5

38

2900

TD32-50/2

5.5

12.5

50

2900

TD40









TD40-16/2

1.1

12.5

16

2900

TD40-20/2

1.5

12.5

20

2900

TD40-18/2

2.2

20

18

2900

TD40-25/2

3

20

25

2900

TD40-30/2

4

25

30

2900

TD40-36/2

5.5

25

36

2900

TD40-48/2

7.5

25

48

2900

TD50









TD50-12/2

1.1

16

12

2900

TD50-15/2

1.5

20

15

2900

TD50-18/2

2.2

25

18

2900

TD50-24/2

3

25

24

2900

TD50-28/2

4

30

28

2900

TD50-35/2

5.5

30

35

2900

TD50-40/2

7.5

35

40

2900

TD50-50/2

11

40

50

2900

TD50-60/2

15

50

60

2900

TD50-70/2

18.5

50

70

2900

TD50-81/2

22

50

81

2900

TD65









TD65-15/2

2.2

30

15

2900

TD65-18/2

3

35

18

2900

TD65-22/2

4

40

22

2900

TD65-30/2

5.5

40

30

2900

TD65-34/2

7.5

50

34

2900

TD65-40/2

11

55

40

2900

TD65-50/2

15

50

50

2900

TD65-60/2

18.5

60

60

2900

TD65-66/2

22

60

66

2900

TD65-81/2

30

70

81

2900

TD80









TD80-13/2

3

50

13

2900

TD80-18/2

4

50

18

2900

TD80-20/2

5.5

60

20

2900

TD80-26/2

7.5

60

26

2900

TD80-30/2

11

80

30

2900

TD80-38/2

15

80

38

2900

TD80-47/2

18.5

80

47

2900

TD80-50/2

22

100

50

2900

TD80-65/2

30

100

65

2900

TD100









TD100-9/2

2.2

50

9

2900

TD100-15/2

4

60

15

2900

TD100-17/2

5.5

80

17

2900

TD100-22/2

7.5

80

22

2900

TD100-25/2

11

100

25

2900

TD100-32/2

15

100

32

2900

TD100-34/2

18.5

120

34

2900

TD100-38/2

22

120

38

2900

TD100-52/2

30

130

52

2900

TD125









TD125-11/4

5.5

120

11

1450

TD125-14/4

7.5

120

14

1450

TD125-20/4

11

120

20

1480

TD125-24/4

15

120

24

1480

TD125-28/4

18.5

140

28

1480

TD125-32/4

22

150

32

1480

TD125-38/4

30

150

38

1480

TD125-42/4

37

180

42

1480

TD125-50/4

45

180

50

1480

TD150









TD150-15/4

11

160

15

1480

TD150-18/4

15

180

18

1480

TD150-20/4

18.5

200

20

1480

TD150-25/4

22

200

25

1480

TD150-33/4

30

200

33

1480

TD150-40/4

37

200

40

1480

TD150-50/4

45

200

50

1480
