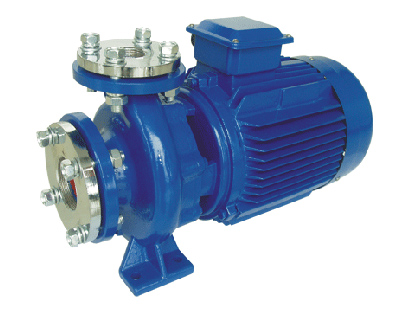

F Standard centrifugal Pumps

STRUCTURAL CHARACTERISTICS
PUMP BODY:cast iron, manufactured to EN 733 - DIN 24255 and UNI 7467-NF E-44-111 standards,
built with flanged suction and delivery openings (UNI 2236 PN10).
PUMP BODY COVER: cast iron which closes the rear pump body and houses the mechanical seal.
IMPELLER: Cast iron
MOTOR SHAFT: AISI 304 stainless steel.
MECHANICAL SEAL: ceramic and graphite.
MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction motor of suitable size, which is quiet, closed and externally ventilated, suitable for continuous duty.
INSULATION: class B.
Motors require an adequate external motor protector, and connections are to be according to current standards.
PROTECTION: IP 44.
WARRANTY: 1 year
SPECIAL FEATURES ON REQUEST:
AISI 316 stainless steel motor shaft
mechanical seal with different materials
IP 55 protection
other voltages
60 Hz frequency
for higher temperature pumped liquids
for use in areas with a higher temperature

Product Power: 0.55-50kw


Model

Power

Flow

Head

Kw

HP

m3/h

m

F-25









F25/110

0.55

0.75

5.5

16

F25/125

0.75

1

5.5

21

F25/160

1.1

1.5

5.5

33.5

F-32









F32/125A

0.55

0.75

6.5

18

F32/125B

0.75

1

6.5

23

F-40









F40/125

1.1

1.5

8.5

23

F40/160A

1.5

2

8.5

29

F40/160B

2.2

3

8.5

33.5

F40/200

3

4

8.5

52

F40/250

4

5.5

8.5

85

F40/250B

5.5

7.5

8.5

74

F-50









F50/125

1.1

1.5

16.5

25

F50/160

1.5

2

16.5

29

F50/200A

2.2

3

16.5

38

F50/200B

3

4

16.5

46

F50/250A

5.5

7.5

16.5

54

F50/250B

7.5

10

16.5

72

F50/250C

11

15

16.5

83

F-65









F65/100

1.5

2

32

14

F65/125A

2.2

3

32

17

F65/125B

3

4

32

22

F65/160

4

5.5

32

31

F65/200A

5.5

7.5

32

41

F65/200B

7.5

10

32

54

F65/250A

11

15

32

73

F65/250B

15

20

32

84

F65/315A

15

20

32

87

F65/315B

22

30

32

106

F65/315C

30

40

32

128

F-80









F80/160

5.5

7.5

65

25

F80/200A

7.5

10

65

38

F80/200B

11

15

65

49

F80/250A

15

20

65

56

F80/250B

18.5

25

65

76

F80/315A

22

30

65

90

F80/315B

30

40

65

104

F-100









F100/125

7.5

10

130

20

F100/160

11

15

130

34

F100/200A

15

20

130

43

F100/200B

22

30

130

56

F100/250

30

40

130

67

F100/315

45

60

130

108
