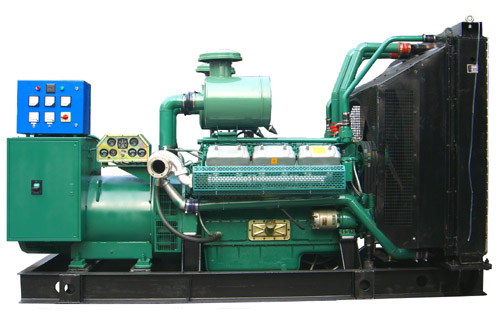

TEK-XUCHAI GFX Generator Sets
  TEK-XUCHAI series generator sets adopt WANDI series diesel engine made by WuXi Engine Co., Ltd. WuXi Engine Co., Ltd. is one of factories for early producing 135 series engine. WANDI series engines are which improve 135 series engine by using advanced technologies, so their performances are better.
  Generally the generators adobt our company¡¯s TFW2 or STF series brushless three phase synchronous generator(the characteristic and technical data see the section ¡®Generators in industry¡¯). If the customer requires that also could adopt TFX series compound excitation generator or STC series third-harmonic excitation generator or other generators.
  The generator set is made up of diesel engine, synchronous generator, control system, radiator and other accessories, and the control system is made up of volt meter, frequency meter, a.c. ampere meter, d.c. ampere meter, water temperature meter, oil temperature meter, oil pressure meter, fuel meter, contoller for protection, transfer switch system and other accessories. Different starting type including manual&electric&automatic Transfer can be selected by our customer.
  The generator sets also can adopt fuel box at bottom, contoller with four protections high water temperature, high oil temperature, low oil pressure, over speed);also can design for silent, fully automatic transfer and automatic parallel system.
Product Power£º 90-540KW



Model

Prime power

Standby power

Fre.

Engine Model

Power

Open type Dim.

Weight

Silent type Dim.

Weight

KW

KVA

KW

KVA

HZ

KW

(mm)

(Kg)

(mm)

(Kg)

GF/GFS-X90

90

113

99

124

50

WD12911

110

2700*900*1480

1900

2800*1000*1600

2100

GF/GFS-X110

110

138

121

151

50

WD15015

141

2800*1150*1750

2000

2900*1300*1850

2250

GF/GFS-X120

120

150

132

165

50

WD129TD16

161.8

2800*1150*1750

2300

2900*1300*1850

2500

GF/GFS-X140

140

175

154

193

50

WD129TD17

176.5

2850*1150*1750

2450

2950*1300*1850

2650

GF/GFS-X150

150

188

165

206

50

WD129TD19

191.2

2850*1150*1750

2650

2950*1300*1850

2900

GF/GFS-X180

180

225

198

248

50

WD129TAD23

235

2950*1200*1750

2800

3100*1300*1850

3000

GF/GFS-X200

200

250

220

275

50

WD129TAD25

258

3050*1400*1900

3000

3150*1500*2000

3250

GF/GFS-X220

220

275

242

303

50

WD129TAD28

280

3150*1400*1900

3200

3300*1600*2000

3450

GF/GFS-X250

250

313

275

344

50

WD129TAD30

309

3250*1400*1900

3300

3300*1600*2000

3600

GF/GFS-X280

280

350

308

385

50

WD129TAD35

353

3350*1500*1950

3700

3500*1650*2100

4000

GF/GFS-X300

300

375

330

413

50

WD269TAD38

382

3350*1500*1950

3900

3500*1650*2100

4200

GF/GFS-X350

350

438

385

481

50

WD269TAD41

418

3500*1500*1950

4100

3650*1700*2100

4400

GF/GFS-X360

360

450

396

495

50

WD269TAD43

432

3500*1500*1950

4300

3650*1700*2100

4600

GF/GFS-X380

380

475

418

523

50

WD269TAD45

465

3650*1700*2050

4350

3800*1900*2150

4700

GF/GFS-X400

400

500

440

550

50

WD269TAD48

482

3650*1700*2050

4400

3800*1900*2150

4800

GF/GFS-X450

450

563

495

619

50

WD269TAD50

506

3650*1700*2050

4500

3800*1900*2150

4900

GF/GFS-X480

480

600

528

660

50

WD269TAD56

560

3800*1850*2200

4700

4000*2000*2400

5000

GF/GFS-X500

500

625

550

688

50

WD287TAD58

580

3800*1850*2300

4750

4000*2000*2500

5100

GF/GFS-X540

540

675

594

743

50

WD287TAD61L

618

3800*1850*2400

4800

4000*2000*2600

5200
