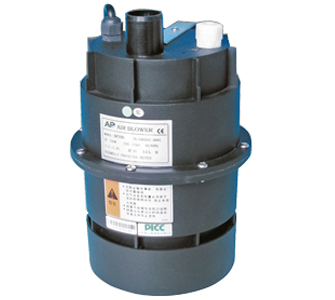

AP Air Blower


Feature: Air Blower: AP series air blowers are first recommended products with low noise, long life, easy installation and competitive price. They are company's most mature products and have been accepted by users. The casing is high reinforce and high temperature resistant engineering plastic. There are two types of structure: single impeller structure and double impeller structure. The lives of double impeller air blowers are longer than the single impeller ones. The differences of air pressure and air flow between single impeller ones and double impeller ones are inconspicuous. Compare the data of noise, although the dB(A) value of double impeller air blower is only 2 or 3 points lower than single impeller air blower, the high-frequency noise of double impeller air blower is much lower than single impeller air blower in peoples' hearing.The wind of double impeller air blower is soft and comfortable. They are the first choice products for hydromassage bathtub and SPA large pool which making bubble.
Motor: low-noise air blowers' dedicated excitation motor which with dedicated thermal protection (VDE or UL approval) that can protect the motor. Insulation class F and with thermal protection from T.I. The carbon brush of the motor is import material. The life is greater than or equal to 1000 hours (continuous duty).There is fuse inside the motor, pneumatic switch control for easy operation.
Installation type:
1.threaded Outlet with handle
2.threaded Outlet, horizontal installation
3.Heating device selecting: without heating device
Application:hydromassage bathtub, the nozzle of SPA large outdoor pool
Instance:
1. the nozzle of hydromassage bathtub:AP200
¡¢AP300¡¢AP400.
2. the nozzle of SPA large pool: AP300
¡¢AP400¡¢AP700
3. the nozzle of swimming pool: AP700
¡¢AP900
Selection notice:
1. Model, power, voltage (frequency 50/60Hz of air blower¡¯s excitation motor is universal, 220-240V, 110-120 V is selectable)
2. Request for outlet fitting size:
¡é32mm¡¢¡é33.5mm is available
3. Standard configuration: 1.5m cable, without plug, without air switch (plug, leakage plug, air switch is available)
4. The suffix of single impeller air blower is V1, the suffix of double impeller air blower is V2, the suffix is X means the motor is small motor (only for 400W and 700W )

Product Power£º 0.2-0.9kw



Model

Power

Current(A)

Max pressure

Max air flow

Noise

Nozzle

 Fuse inside motor(A)

W

230V/50Hz

m

m3/min

dB(A)

n

230V

110V

AP200

200

1.2

0.8

1.0 -1.3

65

6-8

2

3

AP300

350

1.7

1.2

1.3 -1.6

68

8-12

3

5

AP400

400

2.8

1.4

1.8 -2.0

70

12-24

4

7.5

AP700

700

3.3

2.1

2.0 -2.3

73

16-32

5

10

AP900

900

4.5

2.6

2.2 -2.5

76

20-40

7.5

10
