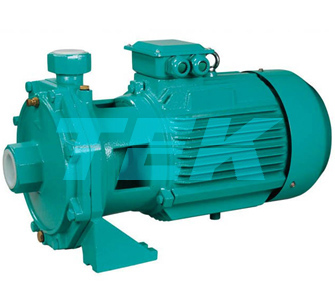

SCM2 Centrifugal Pumps
SCM2 series are with two back to back impellers with higher pressure. They are used for high head values which are hard to reach with single impeller centrifugal pumps, suitable for civil and industrial uses to pump clean water and chemical non-aggressive liquid. Particularly be used for increasing the supplying pressure, feeding boilers and loading extremely. These pumps should be installed in a covered area, protect against the weather.
Pump body: Cast Iron
Impeller: Brass/ Aluminum/ Noryl
Motor: Closed, externally ventilated
Insulation class: B and F
Protection class: IP44 or IP54
Mechanical seal: Stainless steel/Carbon-ceramic
Shaft: 45# Steel / Stainless steel
Thermal protector (if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
single phase 230V,240V,127V, 110,115V/60Hz models are available on request.

Product Power: 0.75-15KW



Model

Power

Q.Max

H.Max

S.Max

In/Outlet

L×W×H

N.W.

20ft

Speed

Ampere(V)

kw

HP

L/min

m

m

mm

mm

kg

pcs

r.p.m

1-220

3-380

SCM2-32

0.55

0.75

90

30

9

25x25

380x210x240

16.2

1500

2850

3.6



SCM2-40

0.75

1

100

35

9

25x25

380x210x240

18.8

1500

2850

5

1.8

SCM2-52T

1.1

1.5

130

48

9

32x25

415x255x320

23.5

850

2850

7.5

2.7

SCM2-60T

1.5

2

140

52

9

32x25

415x255x320

24.5

850

2850

9.6

3.5

SCM2-68T

2.2

3

200

60

9

40x32

480x290x350

31

600

2850

13.5

5

SCM2-70T

3

4

240

70

9

40x32

480x290x350

39

600

2850



7.2

SCM2-80T

4

5.5

260

84

9

40x32

480x290x350

42.5

600

2850



9.3

SCM2-90T

5.5

7.5

280

90

9

50x32

570x290x360

62

500

2850



14.1

SCM2-100T

7.5

10

300

105

9

50x32

570x290x360

62

500

2850



15

SCM2-80AT

7.5

10

360

80

9

50x32

570x290x360

68

500

2850



15

SCM2-90AT

9

12.5

380

95

9

50x32

570x290x360

82

500

2850



18

SCM2-100AT

11

15

420

110

9

50x32

570x290x360

85

500

2850



21.8

SCM2-110T

13

17.5

440

120

9

50x32

600x290x400

110

420

2850



26.3

SCM2-120T

15

20

460

130

9

50x40

600x290x400

120

420

2850



30.5
